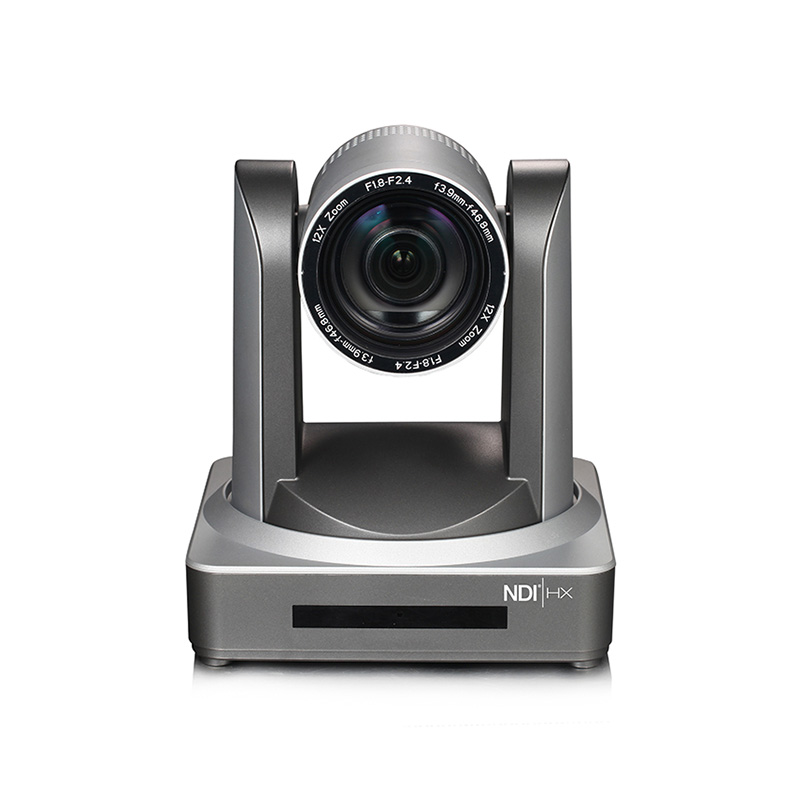

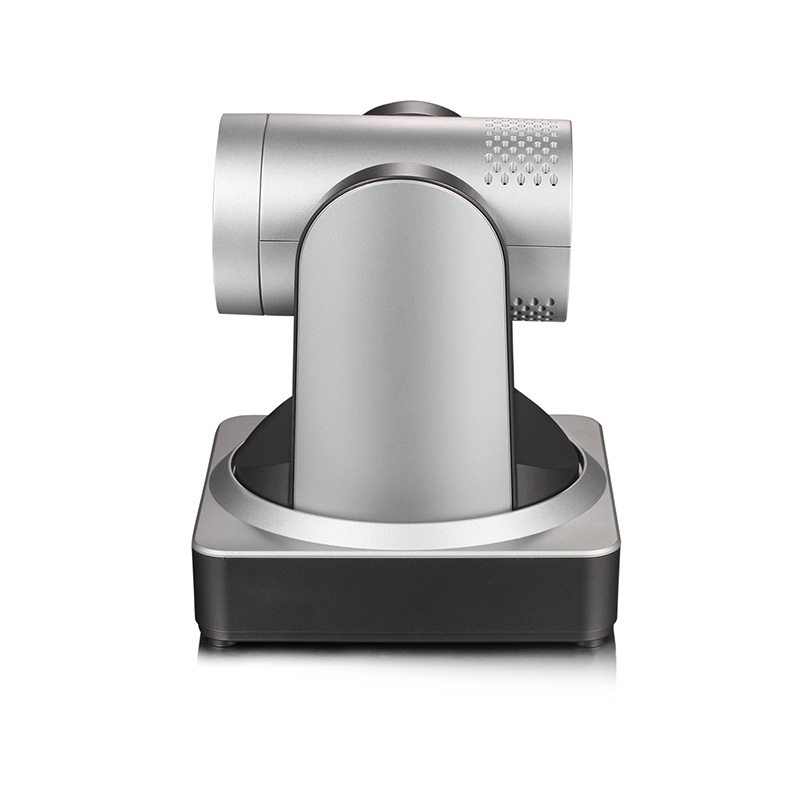

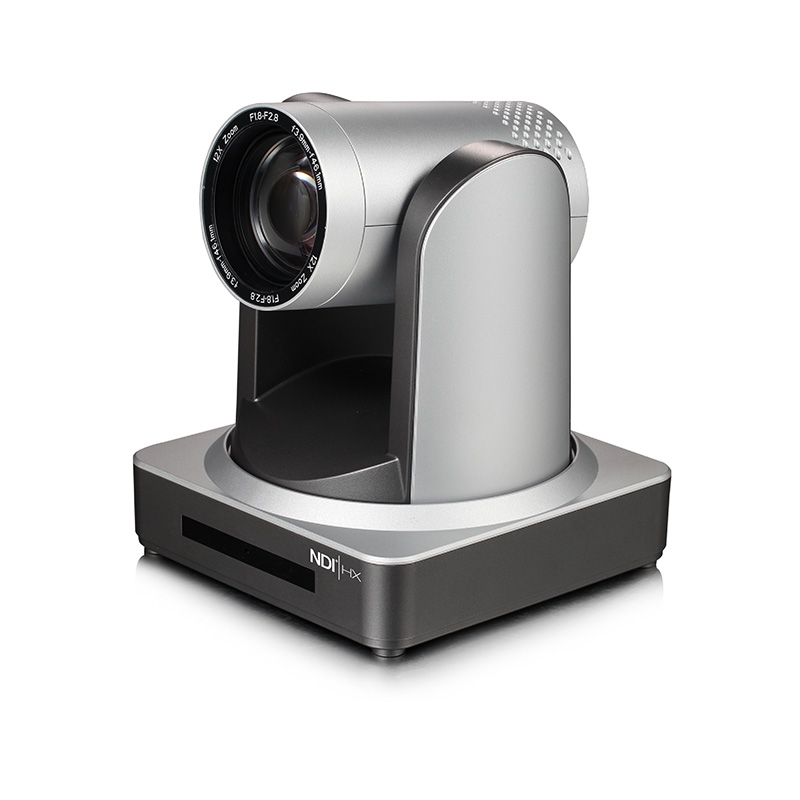

UV510A Series NDI® Full HD PTZ Camera
Minrray is a leading China UV510A Series NDI® Full HD PTZ Camera manufacturer, supplier and exporter.UV510A Series camera is professional A/V broadcasting and conferencing camera with superior performance and rich video interfaces. It is compatible with all of your favorite NDIsupported apps and broadcasting systems. Recommended for live streaming and video production scenarios.
Product Description
UV510A Series NDI® Full HD PTZ Camera
Full HD, Wide View Angle, Multi-protocols, Multiple Video Interfaces, Multi-lens
The UV510A Series NDI/HX Full HD PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Key Features
1. Superb High-definition Image
UV510A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
2. Multiple Optical Zoom Lens
12X, 20X optical zoom lens for options. The lens adopts 83.7° wide angle without distortion.
3. Trinity image auto-focusing technology
Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.
4. Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
5. Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
6. Multiple Audio Output Interfaces
Support HDMI,3G- SDI. 3G-SDI supports to transmit 100 meters under the 1080P60 format.
7. Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
8. Low-Power Sleep Function
Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
9. Multiple Preset
Support 255 preset positions (the remote controller is set to 10preset positions).
| Model | UV510E0 | UV510E2 |
| 1080P PTZ Camera | ||
| Optical Zoom | 12X f=3.9～46.8mm | 20X f＝5.5～110mm |
| FOV(Horizontal) | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） |
| Iris Value | F1.8 - F2.4 | F1.6 – F3.5 |
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor |
| Effective Pixels | 2.07M, 16:9 | 2.07M, 16:9 |
| Video Signal | HDMI/3G-SDI 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 U2(support UVC protocol) 320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 |
|
| Digital Zoom | 10x | |

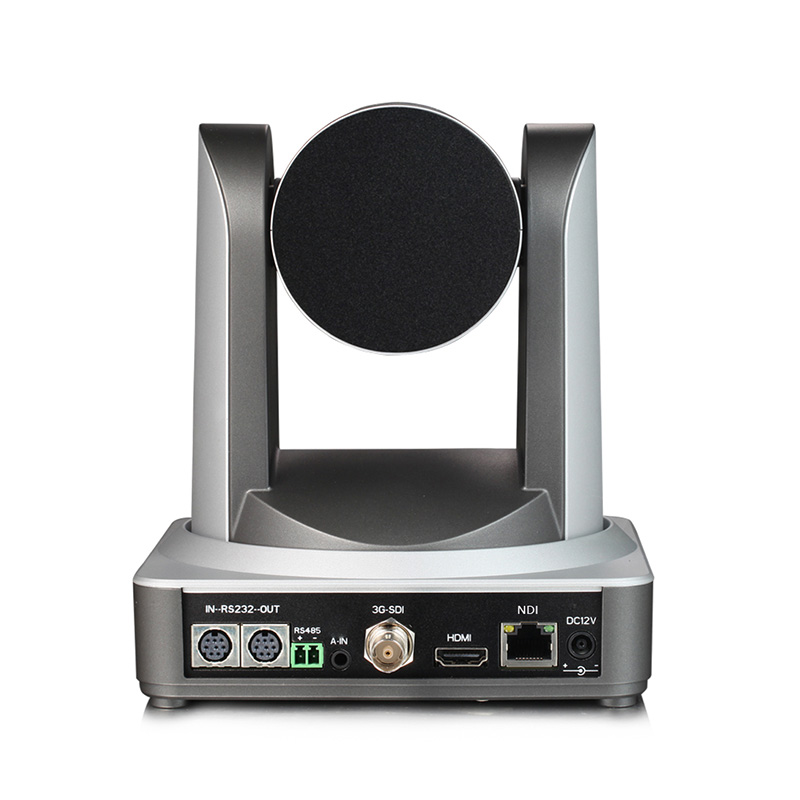

| Interface | HDMI、3G-SDI、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、RS485、DC12V Power Supply | |
| Accessory | Power Adapter, RS232 Cable, Remote Control, User Manual | |
| Model | UV510F0 | UV510F1 |
| 1080P PTZ Camera | ||
| Optical Zoom | 12X f=3.9～46.8mm | 20X f＝5.5～110mm |
| FOV(Horizontal) | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） |
| Iris Value | F1.8 - F2.4 | F1.6 – F3.5 |
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor | 1/2.8 Inch High Quality CMOS Sensor |
| Effective Pixels | 2.07M, 16:9 | 2.07M, 16:9 |
| Video Signal | HDMI 1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94 U2(support UVC protocol) 320x240/352x288/640x480/704x576/720x480/720x576/640x360/800x448/800x600/960x540/1024x576/1024x768/1280x720/ 1920x1080P30/25/20/15/10/5 U3(support UVC protocol) 1）U3：1920X1080P60/50/30/25、1280X720P60/50/30/25、960X540P30、640X360P30、640X480P30、352X288P30、800*600P30 2）U3 Compatibke with U2：960X540P30、640X360P30、1280X720P10/15、720X576P50、720X480P60、640X480P30、352X288P30、800*600P30 |
|
| Digital Zoom | 10x | |
| Interface | HDMI、USB3.0、LAN（POE）、USB2.0、A-IN、RS232-IN、RS232-OUT、DC12V Power Supply | |
| Accessory | Power Adapter, RS232 Cable, Remote Control, User Manual | |
