UV601 Series HD Video Conference Camera
Full HD, Wide View Angle, Multiple Video Interfaces, Multiple Protocols
UV601 Series HD Video Conference Camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Product Description
UV601 Series HD Video Conference Camera
UV601 Series HD Video Conference Camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Key Features
1. Superb High-definition Image
UV601 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
2. Various Optical Zoom Lens
UV601 has 12X/20X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.
3. Exposure dynamic control algorithm: a unique dynamic exposure control algorithm based on the human eye model, so that the picture exposure is uniform and the sense of layering is strong. Using the industry’s most advanced WDR (Wide Dynamic Range) CMOS sensor, combined with exposure dynamic control algorithm processing, it can clearly capture and image all scenes in environments with strong contrast between light and dark (such as backlighting).
4. Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
.Multiple Audio Output Interfaces
Support HDMI, USB2.0,USB3.0, Wired LAN, Wireless LAN
.Audio Input Interface
Support 8000,16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
5. Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, UV601 camera works extremely quiet and moves smoothly.
6. Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and G.711A audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps.
7. Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.
8. Multiple Preset
Support 255 preset positions (the remote controller is set to 10preset positions).
| Model | UV601E0 | UV601E2 |
|---|---|---|
| 1080P PTZ Camera | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor |
1/2.8 Inch High Quality CMOS Sensor |
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） |
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 |
| Effective Pixel | 2.07M,16:9 | 2.07M,16:9 |
| Video Signal | HDMI/SDI 1080P60/50/30/25/59.94/29.97、 1080I60/50/59.94、720P60/50/59.94 U2 320x240/352x288/ 640x360/640x480/ 704x576/704x480/ 720x576/800x448/ 800x600/960x540/ 1024x576/1024x768/ 1280x720/1920x1080P30/ 25/20/15/10/5 |
|
| Optical Zoom | 12X f=3.9～46.8mm |
20X f＝5.5～110mm |
| Digital Zoom | 10X | |

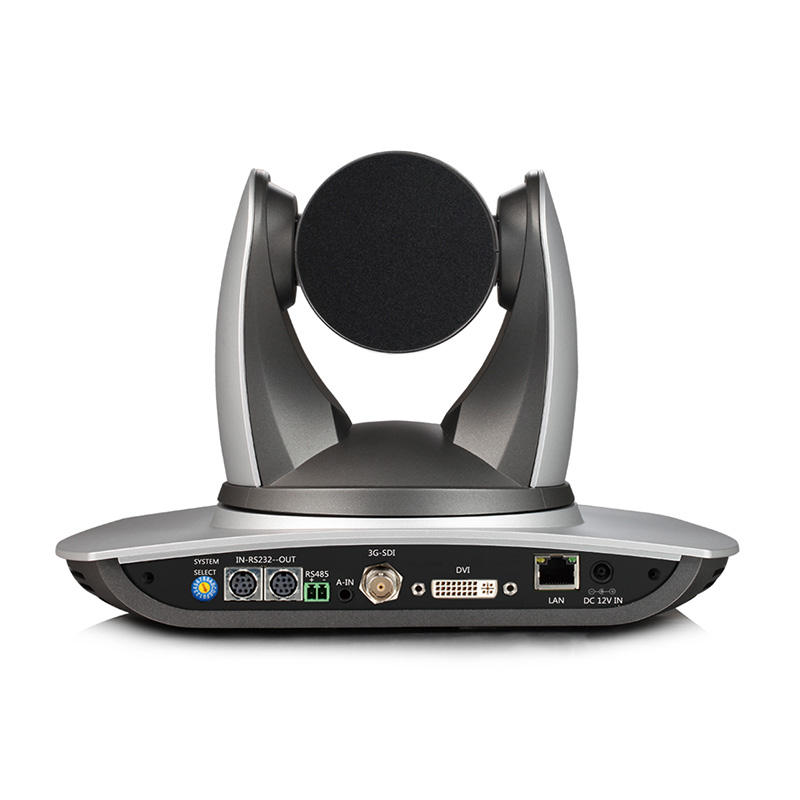

| Interface | HHDMI, SDI, LAN(POE), USB2.0, A-IN, RS232-IN、RS232-OUT, RS 485, Rotary Dip Switch, DC12V Power Supply |
|
| Accessory | Power supply, RS232 control cable, Remote controller, User manual |
|
| Model | UV601F0 | UV601F1 |
|---|---|---|
| 1080P PTZ Camera | ||
| Image Sensor | 1/2.8 Inch High Quality CMOS Sensor |
1/2.8 Inch High Quality CMOS Sensor |
| Viewing Angle | 6.6°（N）70.4°（W） | 3.3°（N）54.7°（W） |
| Iris Value | F1.8 – F2.4 | F1.6 – F3.5 |
| Effective Pixel | 2.07M,16:9 | 2.07M,16:9 |
| Video Signal | HDMI 1080P60/50/30/25/59.94/29.97、 1080I60/50/59.94、 720P60/50/59.94 U3 1）U3： 1920X1080P60/50/30/25、 1280X720P60/50/30/25、 960X540P30、 640X360P30、 640X480P30、 352X288P30、 0*600P30 1）U3 Compatible with U2： 960X540P30、 640X360P30、 1280X720P10/15、 720X576P50、 720X480P60、 640X480P30、 2X288P30、 800*600P30 U2 320x240/352x288/ 640x360/640x480/ 704x576/704x480/ 720x576/800x448/ 800x600/960x540/ 1024x576/1024x768/ 1280x720/1920x1080P30/ 25/20/15/10/5 |
|
| Optical Zoom | 12X f=3.9～46.8mm |
20X f＝5.5～110mm |
| Digital Zoom | 10X | |
| Interface | HDMI, USB3.0, LAN(POE), USB2.0, A-IN, RS232-IN,RS232-OUT, RS485, Rotary Dip Switch, DC12V Power Supply |
|
| Accessory | Power supply, RS232 control cable, Remote controller, User manual |
|
